Cormidi C60 - Tracked Carrier

(600 kg / 1.67 m tipping height)

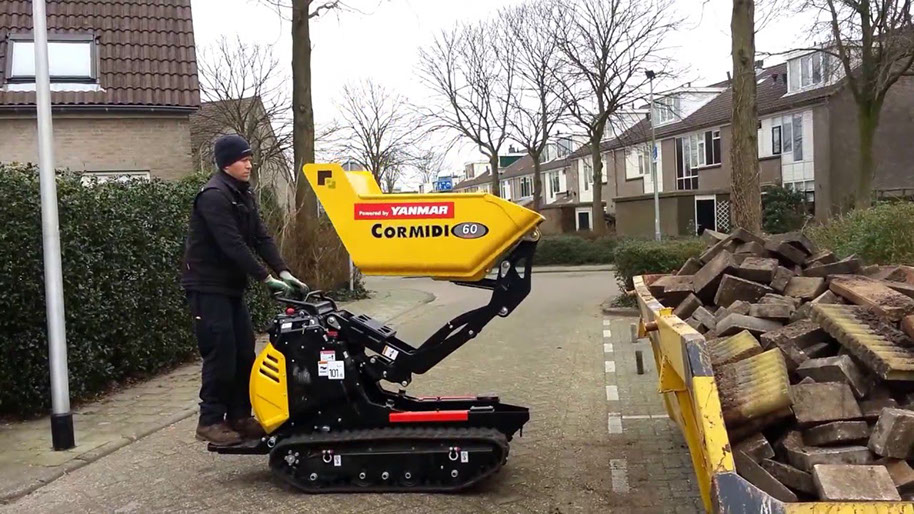

The Cormidi C60 is a high performance and highly reliable tracked carrier.

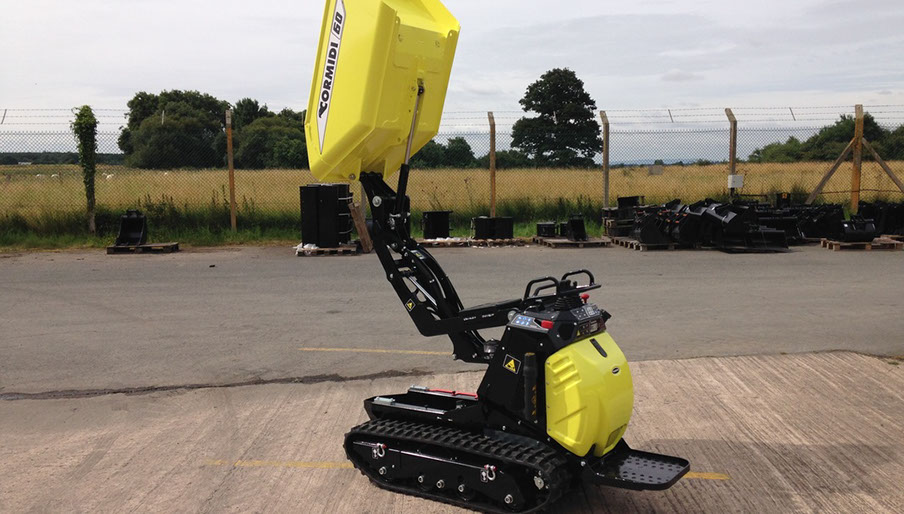

Measuring just 695mm wide it passes through standard doors, additionally with the longest undercarriage (1320mm) and highest discharge height (1675mm at pivot) in its class, it’s not hard to see why this machine proves incredibly popular on all manner of job sites.

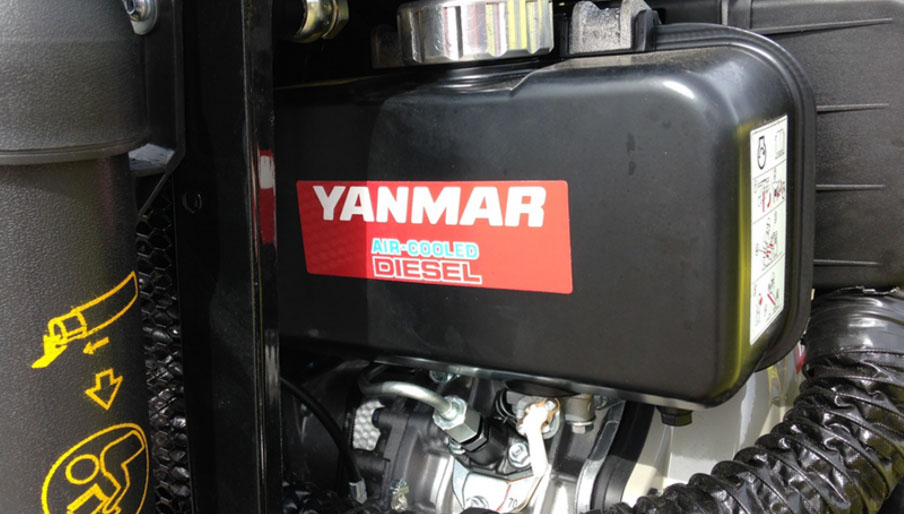

The C60, with a Yanmar LA electric start engine (7.5hp) and top traveling speed of 2.3mph moves over uneven or wet ground even when fully loaded. These tracked dumpers have the perfect combination of speed and power thanks to a hydrostatic transmission. This is based on pumps with axial pistons controlling variable flow. This allows the Cormidi to work comfortably at its top speed.

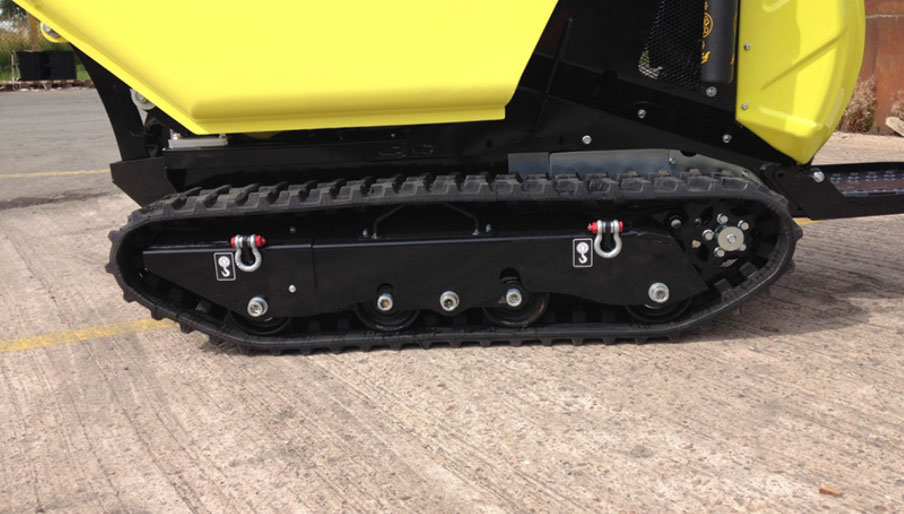

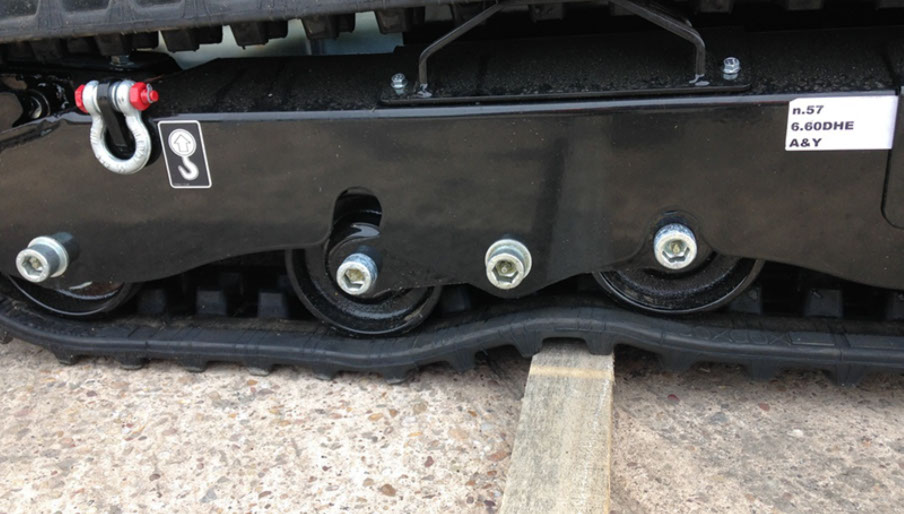

This is aided by innovative 'rocking rollers'. The middle two rollers along the bottom oscillate allowing the tracks to ride over debris whilst still keeping the load stable and giving the operator a safe ride.

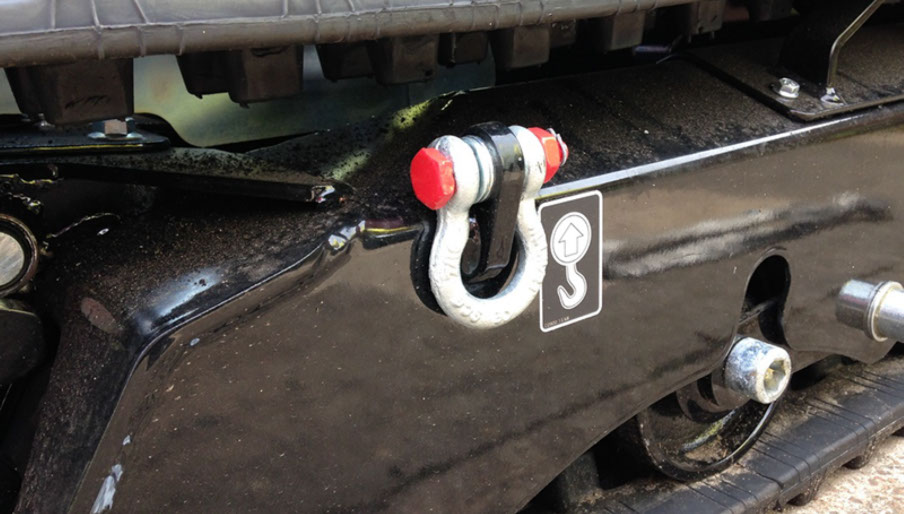

This tracked dumper often goes hand in hand with a mini excavator (e.g. Yanmar's SV08) therefore it is important a machine like this can be easily transported.  Four tie down points make for safe trailer transportation, you will find four useful lifting points too on the C60.

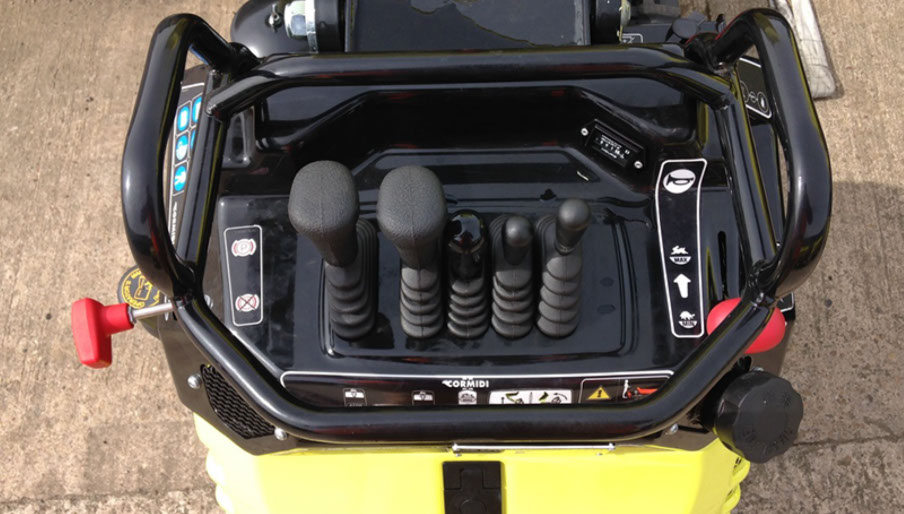

The working levers which control tracking, speed and tipping mechanism are fully protected against any possible damages caused by an excavator when loading.

Download our Cormidi C60 brochure here:
